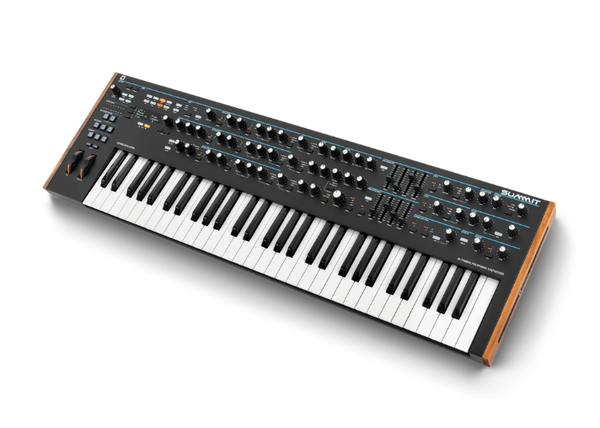

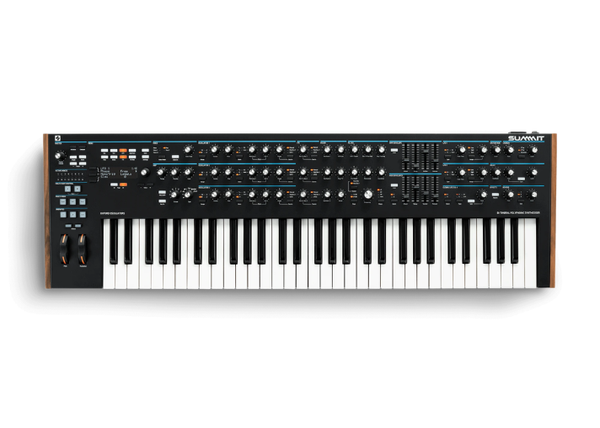

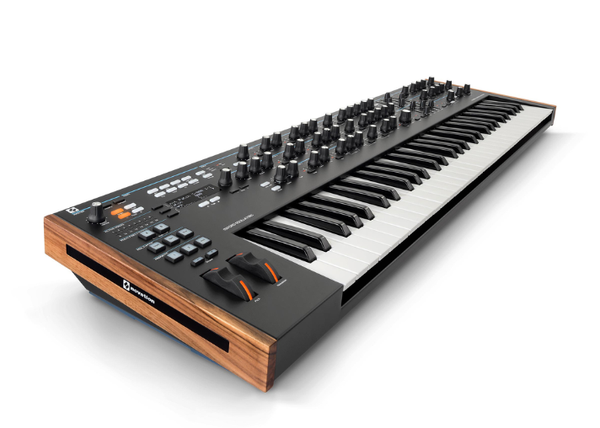

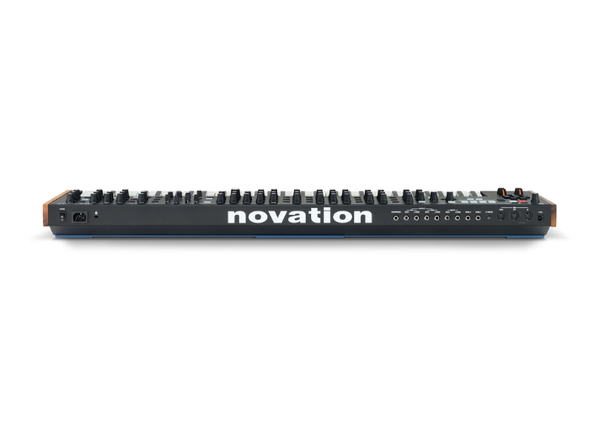

Novation Summit｜多聲部合成器

Mod sources

• Direct (depth)

• Modulation wheel

• Aftertouch (polyphonic and channel AT)

• Expression pedal 1

• Expression pedal 2

• Keyboard velocity

• LFO1 positive

• LFO1 bi-polar

• LFO2 positive

• LFO2 bi-polar

• Amp envelope

• Mod envelope 1

• Mod envelope 2

• Animate 1

• Animate 2

• CV mod input bi-polar

• Bend Up

• Bend Down

Mod destinations

• Oscillator 1-3 frequency, v-sync level, shape amount and level

• Noise source level

• Ring modulator output level

• Overall synth output level

• Filter drive, distortion, cut-off frequency and resonance

• LFO 1 and 2 frequency

• Amp env / mod env 1 / mod env 2 attack, decay and release

• FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1

• Osc 3 -> filter cutoff frequency

• Noise -> filter cutoff frequency

Effects

• FX are per part

• Analogue distortion

• 3 chorus types

• Delay with 16 types of delay sync, LP and HP damping, slew and stereo

Synth engine

• 16 note polyphony (dependent on voices used per note)

• 2-part-timbral

• Layered, Split, Dual Bi-Timbral Modes

• 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2

Per voice

• 3 oscillators

• 1 noise generator with HP filter control

• 1 ring modulator

• 2 LFOs

• 1 amp envelope and 2 mod envelopes (ADHSR + looping)

• 1 filter

Waveforms include

• Sine, tri, sawtooth, square / pulse, plus 43 wavetables of 5 waveforms per row

Filter

• 1 state variable OTA filter per voice

• 12/24dB slope

• Low-pass / band-pass / high-pass / dual filter (separation of each 12dB filters)

• dual filter: LP > HP, LP > BP, HP > BP, LP + HP, LP + BP, HP + BP, LP + LP, BP + BP, and HP + HP

• Pre-filter overdrive

• Post-filter distortion

Modulation

• 16 modulation slots per patch
• 2 sources per destination per slot
